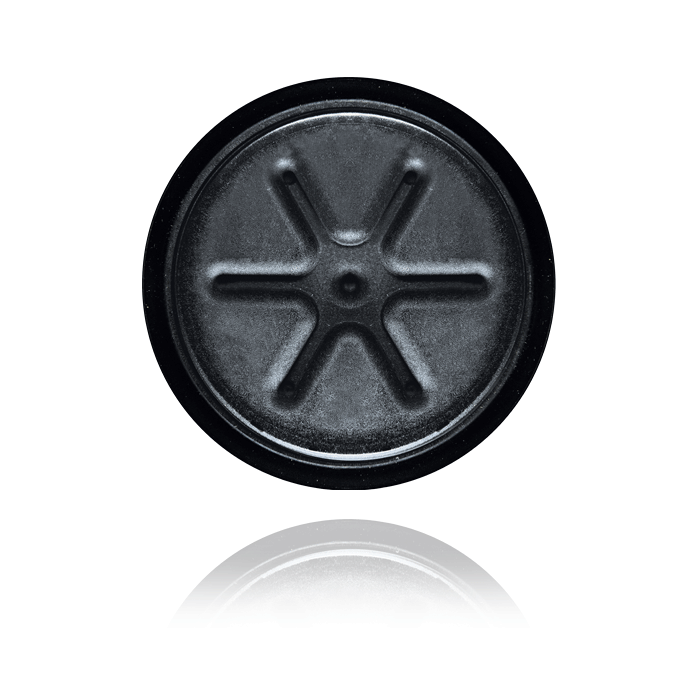

Bursting disc
B50GSXX
Description
A bursting disc that is securely held in the housing under high pressures using a suspension strut, opening once defined interior pressure exceeds and reclosing after after pressure equalization.
The B50GSXX is suited for a wall thickness of 2 mm and it is mounted from the front. The bursting disc has been tested in line with automotive specifications and it is suited for application areas requiring IP6kX and IPX7.
For IPx9k, a protective ring should be provided for the lip seal.
Use
Safety element in exterior areas for lithium ion battery housing.
Standardausführung
- Air volume flow in case of an event: > 180 l/s
- Overall dimensions: Ø 67 x 17.6 mm
- Opening pressure: > 50 mbar
- Wall thickness: 2 ± 0.1 mm
Overview
| Use | Lithium ion batteries |
| Nominal dimension | Ø 50 mm hole diameter |
| Mounting direction | All directions |
| Mounting | snap in |
| Material | Glass fiber reinforced plastic |
| Other materials | EPDM seal |
